Máy chủ IBM System X3650 M4 (7915-C3A)

Máy chủ IBM System X3650 M4 (7915-C3A)

40.480.000 đ
Giá thị trường: 42.690.000 đ
Tiết kiệm :2.210.000 đ
Giá chưa có VAT

Khuyến mại:

- Lắp đặt miễn phí nội thành Hà Nội

- Hướng dẫn sử dụng

Máy chủ IBM System X3650 M4 (7915-C3A)

Model: X3650 M4 Mã hàng: 7915-C3A Còn hàng
Chia sẻ

  • CPU: 1x Xeon 6C E5-2620v2 (15M Cache, 2.1 GHz)
  • RAM: 8GB DDR3-12800/1666MHz ECC
  • HDD: Option HDD SAS/SATA 2.5” ( 8 / max 16 HDD Bay)
  • DVD: Option (Chưa kèm)
  • RAID: M5110e Support RAID (0,1,10)
  • NIC: Quad port 1GB Gigabit Ethernet
  • Rail kit: Sliding Rails Rackmount 2U Kit
  • Power Supply: 1x550Watts



        Bảo hành 36 tháng

Tư vấn bán hàng

Máy chủ Server - Thiết bị mạng

0986.990.609 0986990609

skype Skype mail dung@netsys.vn

Máy để bàn - Laptop - Máy văn phòng

0981.233.556 0981.233.556

skype Skype mail kinhdoanh1@netsys.vn

Thiết bị mã số mã vạch

0986.990.609 0986.990.609

skype Skype mail dung@netsys.vn

IBM System X3650 M4 (7915-C3A)

Thông tin chung
Hãng sản xuất IBM
Kiểu máy chủ Rack
Rack Height 2U
Bộ vi xử lý
Tốc độ CPU 2.10GHz
CPU FSB 7.20 GT/s
Loại CPU sử dụng Intel Xeon E5-2620v2
Số lượng CPU 1 CPU
Bộ nhớ đệm 15MB
Số lượng CPU hỗ trợ 2 CPUs
Bộ nhớ chính
Dung lượng bộ nhớ chính (RAM) 8GB
Loại bộ nhớ DDR3
Tốc độ BUS của RAM 1600MHz
Hỗ trợ ECC
Khả năng nâng cấp RAM expand to 768GB
Lưu trữ
Dung lượng ổ cứng (HDD Capacity) Không kèm ổ cứng
Kiểu giao tiếp HDD • -
Dung lượng HDD tối đa hỗ trợ 16TB
RAID, Storage Controller M5110e
Hot SWAP
Ổ quang (Optical drive) Không có
Networking, power, expansions
Số lượng cổng mạng (LAN) 4 ports
Nguồn kèm theo (PSU) 550W
Phần mềm, bảo mật
Hệ điều hành cài sẵn Không có



Introduction  IBM System X3650 M4 (7915-C3A)


The IBM® System x3650 M4 server provides outstanding performance for your business-critical applications. Its energy-efficient design supports more cores, memory, and data capacity in a scalable 2U package that is easy to service and manage. With more computing power per watt and the latest Intel Xeon processors, you can reduce costs while maintaining speed and availability.

Suggested use: database, virtualization, enterprise applications, collaboration/email, streaming media, web, HPC, Microsoft RemoteFX, and cloud applications.

Figure 1 shows the IBM System x3650 M4.

The IBM System x3650 M4
Figure 1. The IBM System x3650 M4


Back to top

Did you know?  IBM System X3650 M4 (7915-C3A)

The x3650 M4 offers a flexible, scalable design and simple upgrade path to 16 hard-disk drives (HDDs) or solid-state drives (SSDs) plus optical and tape drives at the same time, with up to six PCIe Gen 3 slots and up to 768 GB of memory. This flexible onboard Ethernet solution provides four standard embedded Gigabit Ethernet ports and two optional embedded 10 Gb Ethernet ports without occupying PCIe slots. Comprehensive systems management tools with the next-generation Integrated Management Module II (IMM2) make it easy to deploy, integrate, service, and manage.


Back to top

Key features  IBM System X3650 M4 (7915-C3A)

The x3650 M4 is an outstanding 2U two-socket business-critical server, offering improved performance and pay-as-you grow flexibility along with new features that improve server management capability. This powerful system is designed for your most important business applications and cloud deployments.

Combining balanced performance and flexibility, the x3650 M4 is a great choice for small and medium businesses up to the large enterprise. It can provide outstanding uptime to keep business-critical applications and cloud deployments running safely. Ease of use and comprehensive systems management tools make it easy to deploy. Outstanding RAS and high-efficiency design improve your business environment and help save operational costs.

Scalability and performance  IBM System X3650 M4 (7915-C3A)

The x3650 M4 offers numerous features to boost performance, improve scalability, and reduce costs:

  • Intel Xeon processor E5-2600 v2 product family
    • Improves productivity by offering superior system performance with up to 12-core processors, up to 30 MB of L3 cache, and up to two 8 GT/s QPI interconnect links.
    • Supports up to two processors, 24 cores, and 48 threads maximize the concurrent execution of multi-threaded applications.
    • Supports up to 1866 MHz memory speeds.
    • Supports up to 768 GB memory with 32 GB LRDIMMs or HCDIMMs.
  • Intel Xeon processor E5-2600 product family
    • Improves productivity by offering superior system performance with up to 8-core processors, up to 20 MB of L3 cache, and up to two 8 GT/s QPI interconnect links.
    • Supports up to two processors, 16 cores, and 32 threads maximize the concurrent execution of multi-threaded applications.
    • Supports up to 1600 MHz memory speeds.
    • Supports up to 768 GB memory with 32 GB LRDIMMs or HCDIMMs.
  • Intelligent and adaptive system performance with Intel Turbo Boost Technology 2.0 allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor TDP.
  • Intel Hyper-Threading Technology boosts performance for multi-threaded applications by enabling simultaneous multi-threading within each processor core, up to two threads per core.
  • Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
  • Intel Advanced Vector Extensions (AVX) significantly improve floating-point performance for compute-intensive technical and scientific applications.
  • 12 Gbps SAS internal storage connectivity doubles the data transfer rate compared to 6 Gb SAS solutions to maximize performance of storage I/O-intensive applications.
  • The use of solid-state drives (SSDs) instead of, or along with, traditional spinning drives (HDDs) can significantly improve I/O performance. An SSD can support up to 100 times more I/O operations per second (IOPS) than a typical HDD.
  • Up to 32 1.8-inch SSD bays, or up to 16 2.5-inch bays, or up to 6 3.5-inch bays, together with internal backup and an optical drive at the same time, provide a flexible and scalable all-in-one platform to meet your increasing demands.
  • The server has four integrated Gigabit Ethernet ports and two optional 10 Gb Ethernet ports with mezzanine cards that do not consume PICe slots.
  • The server offers PCI Express 3.0 I/O expansion capabilities that improve the theoretical maximum bandwidth by almost 100% (8 GTps per link using 128b/130b encoding) compared to the previous generation of PCI Express 2.0 (5 GTps per link using 8b/10b encoding).
  • With Intel Integrated I/O Technology, the PCI Express 3.0 controller is integrated into the Intel Xeon processor E5 family. This integration helps to dramatically reduce I/O latency and increase overall system performance.
  • Support for NVIDIA Quadro graphics processing units (GPUs) to maximize computing power


Availability and serviceability  IBM System X3650 M4 (7915-C3A)

The x3650 M4 provides many features to simplify serviceability and increase system uptime:

  • The server offers memory mirroring and memory rank sparing for redundancy in the event of a non-correctable memory failure.
  • Tool-less cover removal provides easy access to upgrades and serviceable parts, such as CPU, memory, and adapter cards.
  • The server offers hot-swap drives, supporting RAID redundancy for data protection and greater system uptime.
  • The server has up to two redundant hot-swap power supplies and four hot-swap dual-motor redundant fans (two fan zones with an N+1 fan design) to provide availability for business-critical applications.
  • The light path diagnostics panel and individual light path LEDs quickly lead the technician to failed (or failing) components, which simplifies servicing, speeds up problem resolution, and helps improve system availability.
  • Predictive Failure Analysis (PFA) detects when system components (processors, VRMs, memory, HDDs, fans, and power supplies) operate outside of standard thresholds and generates proactive alerts in advance of a possible failure, therefore increasing uptime.
  • Solid-state drives (SSDs) offer significantly better reliability than traditional mechanical HDDs for greater uptime.
  • Built-in Integrated Management Module Version II (IMM2) continuously monitors system parameters, triggers alerts, and performs recovering actions in case of failures to minimize downtime.
  • Built-in diagnostics, using Dynamic Systems Analysis (DSA) Preboot, speed up troubleshooting tasks to reduce service time.
  • Three-year customer-replaceable unit and on-site limited warranty, 9x5 next business day. Optional service upgrades are available.


Manageability and security  IBM System X3650 M4 (7915-C3A)

Powerful systems management features simplify local and remote management of the x3650 M4:

  • The server includes an Integrated Management Module II (IMM2) to monitor server availability and perform remote management.
  • Integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
  • Integrated Trusted Platform Module (TPM) 1.2 support enables advanced cryptographic functionality, such as digital signatures and remote attestation.
  • Industry-standard Advanced Encryption Standard (AES) NI support for faster, stronger encryption.
  • IBM Systems Director offers comprehensive systems management tools that help to increase uptime, reduce costs, and improve productivity through advanced server management capabilities.
  • Intel Execute Disable Bit functionality can help prevent certain classes of malicious buffer overflow attacks when combined with a supported operating system.
  • Intel Trusted Execution Technology provides enhanced security through hardware-based resistance to malicious software attacks, allowing an application to run in its own isolated space, protected from all other software running on a system.


Energy efficiency  IBM System X3650 M4 (7915-C3A)

The x3650 M4 offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to the green environment:

  • Energy-efficient planar components help lower operational costs.
  • The x3650 M4 is Energy Star 2.0 compliant. Energy Star is the trusted, US government-backed symbol for energy efficiency, with the goal of helping customers save money and protect the environment through energy efficient products and practices. For the Power and Performance Data Sheet, seehttp://ibm.com/systems/x/hardware/energy-star
  • Highly efficient 550 W, 750 W, and 900 W AC power supplies with 80 PLUS Platinum certification. Available 750W DC power option.
  • Intel Xeon processor E5-2600 and E5-2600 v2 product families offer significantly better performance over the previous generation while fitting into the same thermal design power (TDP) limits.
  • Intel Intelligent Power Capability powers individual processor elements on and off as needed, to reduce power draw.
  • Low-voltage Intel Xeon processors draw less energy to satisfy the demands of power and thermally constrained data centers and telecommunication environments.
  • Low-voltage 1.35 V DDR3 memory RDIMMs consume 15% less energy compared to 1.5 V DDR3 RDIMMs.
  • Solid state drives (SSDs) consume as much as 80% less power than traditional spinning 2.5-inch HDDs.
  • The server uses hexagonal ventilation holes, which is a part of IBM Calibrated Vectored Cooling™ technology. Hexagonal holes can be grouped more densely than round holes, providing more efficient airflow through the system.
  • IBM Systems Director Active Energy Manager™ provides advanced data center power notification and management to help achieve lower heat output and reduced cooling needs.

Locations of key components and connectors  IBM System X3650 M4 (7915-C3A)

Figure 2 shows the front of the server.

Front view of the IBM System x3650 M4
Figure 2. Front view of the IBM System x3650 M4

Figure 3 shows the rear of the server.

Rear view of the IBM System x3650 M4
Figure 3. Rear view of the IBM System x3650 M4

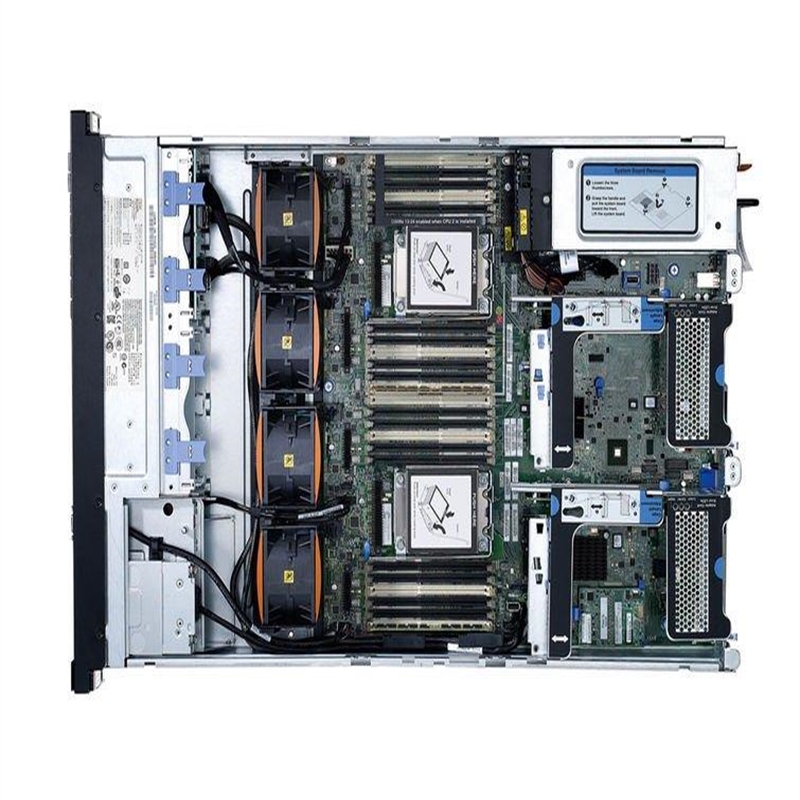

Figure 4 shows the locations of key components inside the server.

Inside view of the IBM System x3650 M4
Figure 4. Inside view of the IBM System x3650 M4


Standard specifications

The following table lists the standard specifications.

Table 1. Standard specifications

Components Specification
Form factor 2U Rack.
Processor E5-2600 v2: Up to two Intel Xeon processor E5-2600 v2 product family CPUs with 12 cores (up to 2.7 GHz) or ten cores (up to 3.0 GHz) or eight cores (up to 3.3 GHz) or six cores (up to 3.5 GHz) or four cores (up to 3.5 GHz). Two QPI links up to 8.0 GT/s each. Up to 1866 MHz memory speed. Up to 30 MB L3 cache.
E5-2600: Up to two Intel Xeon processor E5-2600 product family CPUs with eight cores (up to 2.9 GHz) or six cores (up to 2.9 GHz) or four cores (up to 3.3 GHz). Two QPI links up to 8.0 GT/s each. Up to 1600 MHz memory speed. Up to 20 MB L3 cache.
Chipset Intel C602J.
Memory Up to 24 DIMM sockets (12 DIMMs per processor).
E5-2600 v2: RDIMMs, UDIMMs, HyperCloud DIMMs, and LRDIMMs (Load Reduced DIMMs) are supported, but memory types cannot be intermixed. Memory speed up to 1866 MHz.
E5-2600: RDIMMs, UDIMMs, HyperCloud DIMMs, and LRDIMMs (Load Reduced DIMMs) are supported, but memory types cannot be intermixed. Memory speed up to 1600 MHz.
Memory maximums E5-2600 v2:
  • With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors
  • With UDIMMs: Up to 128 GB with 16x 8 GB UDIMMs and two processors
  • With HyperCloud DIMMs: Up to 768 GB with 24x 32 GB HyperCloud DIMMs and two processors
  • With LRDIMMs: Up to 768 GB with 24x 32 GB LRDIMMs and two processors
E5-2600:
  • With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors
  • With UDIMMs: Up to 64 GB with 16x 4 GB UDIMMs and two processors
  • With HyperCloud DIMMs: Up to 768 GB with 24x 32 GB HyperCloud DIMMs and two processors
  • With LRDIMMs: Up to 768 GB with 24x 32 GB LRDIMMs and two processors
Memory protection ECC, Chipkill, memory mirroring, and memory rank sparing.
Disk drive bays Up to 32 1.8" SSD bays, or 16 2.5" hot-swap SAS/SATA bays, or up to six 3.5" hot-swap SAS/SATA bays, or up to eight 2.5" Simple Swap SATA bays, or up to six 3.5" Simple Swap SATA bays.
Maximum internal storage Up to 19.2 TB with 1.2 TB 2.5" SAS HDDs, up to 16 TB with 1 TB 2.5" NL SAS/SATA HDDs, up to 12.8 TB with 400 GB 1.8" SATA SSDs, up to 25.6 TB with 1.6 TB 2.5" SAS SSDs, or up to 24 TB with 4 TB 3.5" NL SAS/SATA HDDs. Intermix of SAS/SATA is supported.
RAID support 6 Gb SAS/SATA: RAID 0, 1, 10 with integrated M5110e or optional M5110; optional upgrades to RAID 5, 50 are available (zero-cache; 512 MB battery-backed cache; 512 MB or 1 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5110e or M5110 with 512 MB or 1 GB cache upgrades.
12 Gb SAS/SATA: RAID 0, 1, 10 with optional M5210; optional upgrades to RAID 5, 50 are available (zero-cache; 1 GB non-backed cache; 1 GB or 2 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with 1 GB or 2 GB cache upgrades.
Optical drive bays One bay for optional DVD-ROM or Multiburner drive.
Tape drive bays Optional Tape Enablement Kit is available to support one DDS5, DDS6, or RDX internal USB tape drive.
Network interfaces Four integrated Gigabit Ethernet 1000BASE-T ports (RJ-45); two embedded 10 Gb Ethernet ports (10GBASE-T RJ-45 or 10GBASE-SR SFP+ based) on optional 10 Gb Ethernet mezzanine card (does not consume PCIe slot).
PCI Expansion slots Up to six slots depending on the riser cards installed. The slots are as follows:
  • Slot 1: PCIe 3.0 x8; full-height, full-length
  • Slot 2: PCIe 3.0 x8; full-height, half-length
  • Slot 3: PCIe 3.0 x8; full-height, half-length
  • Slot 4: Optional, requires second processor and second riser card
  • Slot 5: Optional, requires second processor and second riser card
  • Slot 6: Optional, requires second processor and second riser card
Optional riser cards available with PCIe x8 or PCIe x16 or PCI-X slots.
Ports Two USB 2.0 and one DB-15 video on front. Four USB 2.0, one DB-15 video, one DB-9 serial, one RJ-45 systems management, four RJ-45 GbE network ports, two optional RJ-45 or SFP+ 10 GbE network ports on rear. Two internal USB ports (for embedded hypervisor and internal tape drive).
Cooling IBM Calibrated Vectored Cooling™ with up to four redundant hot swap fans (three standard, additional fan with second processor or with the x3650 M4 Thermal Solution Kit); two fan zones with N+1 fan design; each fan has two motors.
Power supply Up to two redundant hot-swap 550 W AC or 750 W AC or 900 W AC power supplies (all 80 PLUS Platinum certification), or -48V 750 W DC power supply options.
Video Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors.
Hot-swap parts Hard drives, power supplies, and fans.
Systems management UEFI, IBM Integrated Management Module II (IMM2), Predictive Failure Analysis, Light Path Diagnostics, Automatic Server Restart, IBM Systems Director and Active Energy Manager, IBM ServerGuide. Optional IBM Integrated Management Module Advanced Upgrade software feature for remote presence.
Security features Power-on password, administrator's password, Trusted Platform Module (TPM).
Operating systems supported Microsoft Windows Server 2012 R2, 2012, 2008 R2 and 2008, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 10 and 11, VMware ESX 4.1 and VMware ESXi 4.1 embedded hypervisor (not supported with E5-2600 v2 models), VMware vSphere 5 (ESXi) and vSphere 5.1 (ESXi).
Limited warranty Three-year customer-replaceable unit and on-site limited warranty with 9x5 next business day (NBD).
Service and support Optional service upgrades are available through IBM ServicePacs®: Four-hour or two-hour response time, eight-hour fix time, one-year or two-year warranty extension, remote technical support for IBM hardware and some IBM and third-party applications.
Dimensions Height: 86 mm (3.4 in), width: 445 mm (17.5 in), depth: 746 mm (29.4 in)
Weight Minimum configuration: 25 kg (55 lb), maximum: 30 kg (65 lb)


The x3650 M4 servers are shipped with the following items:

  • Statement of Limited Warranty
  • Important Notices
  • Rack Installation Instructions
  • Documentation CD that contains the Installation and User's Guide
  • IBM Systems Director Flyer
  • IBM System x® Gen-III Slides Kit
  • IBM System x Gen-III Cable Management Arm (CMA)
  • 2.8 m (9.18 in) C13-C14 power cord (one for models with one power supply, and two for models with two power supplies)
