Máy chủ IBM System X3100 M5 5457-F3A

Máy chủ IBM System X3100 M5 5457-F3A

28.990.000 đ
Giá thị trường: 31.850.000 đ
Tiết kiệm :2.860.000 đ
Giá chưa có VAT

Khuyến mại:

- Lắp đặt miễn phí nội thành Hà Nội

- Hướng dẫn sử dụng

Máy chủ IBM System X3100 M5 5457-F3A

Model: System x3100 M5 Mã hàng: 5457F3A Còn hàng
Chia sẻ

  •  - CPU: 1xXeon 4Core E3-1271v3 (8M Cache 3.6GHz)
     - RAM: 4GB DDR3- PC3L 12800/1600MHz ECC UDIMM
     - HDD: Option ( up to 04 HDD SAS/SATA 3.5” )
     - DVD: DVD Multi-Burner
     - RAID: ServeRAID M1115 Suport Raid ( 0, 1, 10)
     - Power Supply: 1x430Watts redundant
     - Form factor/height : 5U tower



           Bảo hành: 36 tháng chính hãng

Tư vấn bán hàng

Máy chủ Server - Thiết bị mạng

0986.990.609 0986990609

skype Skype mail dung@netsys.vn

Máy để bàn - Laptop - Máy văn phòng

0981.233.556 0981.233.556

skype Skype mail kinhdoanh1@netsys.vn

Thiết bị mã số mã vạch

0986.990.609 0986.990.609

skype Skype mail dung@netsys.vn

IBM System x3100 M5 5457F3A



Mô tả sản phẩm  x3100 M5 5457F3A

Server IBM Tower X3100 M5 E3-1271V3 được thiết kế tối ưu cho môi trường doanh nghiệp yêu cầu khắt khe nhất, đặc biệt phù hợp với mối trường doanh nghiệp vừa và nhỏ ( SMB ) với giá thành rất hợp lý. Sản phẩm chính hãng kèm theo dịch vụ sau bán hàng tốt nhất từ SMB giúp quý khách hàng có được sự hài lòng cao nhất

Server IBM Tower X3100 M5 E3-1271V3 ( 5457-F3A / 5457F3A )

Processor : 1 x Intel® Xeon® Processor E3-1271 v3 ( 4 cores, 8 threads, 3.6GHz, Turbo 4GHz, 8M Cache, 5GT/s DMI, 80W, LGA 1150)
* Socket 1155
* Support Intel® 64-bit Xeon® processor(s) Intel® Xeon ® processor E3-1200v3 series
Memory : 4GB DDR3 1600MT/s 240-Pin DDR3 ECC UDIMMs (PC3L-12800E)
Up to 32GB (4 DIMM Slots): 2GB/4GB/8GB DDR3 up to 1600MT/s
Hard Drive : Optional – Non of SAS/SATA Hot-swap Hard Drive
Compact tower: Up to four 3.5″ simple-swap bays
Standard tower: Up to four 3.5″ hot-swap bays (HDDs) or eight 2.5″ hot-swap bays (HDDs or SSDs)
Storage Controller : ServeRaid H1110 support RAID 0,1,10. Optional upgrade to RAID 5
Network Controller : Dual integrated Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T IEEE 802.3 standards, RJ45 output
Optical Drive : Optional
Power Supply : Single, Hot-swap 430W High Effictioncy Power Supply
PCI-Express Slots :
Four PCI Express slots:
Slot 1, PCIe 3.0 x16 (x8 wired), full-height, half-length.
Slot 2, PCIe 3.0 x8 (x8 wired), full-height, half-length.
Slot 2, PCIe 2.0 x8 (x4 wired), full-height, half-length.
Slot 4, PCIe 2.0 x4 (x1 wired), full-height, half-length.
Form Factor : Std Tower

Highlights x3100 M5 5457F3A

  • Delivers new performance capabilities, powered by the latest Intel processors and energy-saving low-voltage memory
  • Safeguards and boosts your growing business with hard drive hot-swap capabilities,1 40°C operating temperature enhancement kit,2 four PCIe slots, storage choices, and flexible options
  • Offers built-in data protection with up to four RAID levels and reliability you expect from System x®
  • New performance capabilities, powered by the latest Intel processors (choice of Intel Xeon E3-1200 v3, Core i3, Pentium, or Celeron)
  • Energy-saving low-voltage memory
  • Upgradable operating temperature (up to 40°C) with optional temperature enhancement kit for optimized energy efficiency
  • Built-in data protection with up to four RAID levels and reliability you expect from System x®: Standard ServeRAID™-0,-1,-10, plus RAID-5 available via Feature on Demand
  • Flexible storage options for up to 24 TB of capacity: 4 x 3.5-inch or 8 x 2.5-inch hard disk drives (HDDs), plus hot-swap options for minimized downtime
  • USB 3.0 for up to 10x faster data transfer
  • Graphics processor: NVDIA K600 GPU available for graphics support
  • Compact mini 4U design or flexible 5U for redundant, energy-smart 80 PLUS® Silver power supply

The new single-socket System Server IBM Tower X3100 M5 E3-1271V3 server provides business-class reliability and performance in a compact tower, optimized for small to medium-sized businesses and distributed environments. Equipped with the latest Intel® Xeon® E3-1200 v3 processors, USB 3.0 for fast data transfer, 1.35 V low-voltage memory for power savings, 3.5-inch hot-swap SAS hard disk drives (HDDs) for minimized downtime, and four levels of RAID for enhanced data protection, the Server IBM Tower X3100 M5 E3-1271V3 brings new levels of performance to your workloads while maximizing energy savings. This efficient tower meets your business needs today and offers upgrade potential when your requirements grow.

Reliability and performance in a flexible, compact tower server

Whether your workloads include basic infrastructure, web server, or file and print, the Server IBM Tower X3100 M5 E3-1271V3 delivers. Choose your storage preference from models with four 3.5-inch simple-swap HDD bays, or get the hot-swap versatility of eight 2.5-inch bays or four 3.5-inch hot-swap bays. Standard features include capacity for up to 32 GB of memory, two Gigabit Ethernet ports, and two front-mounted fast USB 3.0 ports, plus multiple internal and external USB 2.0 connections. Business-class reliability features—such as standard RAID, basic light path diagnostics, and optional redundant power supplies and fans—protect your data and facilitate outstanding uptime for your business at great value. Select configurations of the Server IBM Tower X3100 M5 E3-1271V3 are part of the Express Portfolio™, designed to meet the needs of small and midsized businesses. Easy to manage, Express models vary by country.

Product features x3100 M5 5457F3A

  • Generous business-class memory offers greater performance per price point
  • Support for up to four 3.5-inch simple swap or hot- swap hard disk drives or up to eight hot-swap 2.5-inch SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs) that optimize implementation flexibility (model dependent)

Hardware summary x3100 M5 5457F3A

  • 4U/5U tower server (model dependent)
  • Single-processor system
  • Choice of processors—Intel Xeon E3-1200 v3 series (quad-core) up to 3.7 GHz/8 MB/1600 MHz or Intel Core i3 4300 and 4100 series (dual-core) up to 3.7 GHz/4 MB/1600 MHz or low-cost Celeron

Introduction  x3100 M5 5457F3A

The Server IBM Tower X3100 M5 E3-1271V3 single-socket tower server is designed for small businesses and first-time server buyers looking for a solution to improve business efficiency. It delivers several innovative features with a competitive price, either in a compact mini-tower form factor, or standard tower form factor with hot-swap power supplies and disk drives. The System Server IBM Tower X3100 M5 E3-1271V3 provides next-generation performance in an innovative and compact design with flexible configuration options, built-in security, and systems management capabilities. It leverages the next-generation dual-core and quad-core Intel Xeon processor technology.

Suggested uses: Retail/kiosks, and SMBs, looking for file and printer servers, web serving, small business infrastructure, and virtual desktops for small workgroups.

The IBM System x3100 M5 (compact mini-tower shown)

Figure 1. The System Server IBM Tower X3100 M5 E3-1271V3 (compact mini-tower shown)

Back to top

Did you know?

The System Server IBM Tower X3100 M5 E3-1271V3 is a compact, cost-effective, single-processor tower or rack-mountable server that has been optimized to provide outstanding availability, manageability, and performance features to small-to-medium-sized businesses, retail stores, or distributed enterprises. It supports the Intel Xeon E3-1200 v3 “Haswell” family of processors for applications that require performance and stability, and Core i3, Pentium, and Celeron processors for applications that require lower cost.

The system includes features that are not typically seen in this class of system, such as standard, embedded RAID 0 and RAID 1, remote control capabilities even when the machine is powered off, and Predictive Failure Analysis (PFA) on processor and memory. Some models also support hot-swap redundant power supplies and hot-swap disk drives.

Back to top

Key features  x3100 M5 5457F3A

Often, small-to-medium sized businesses (SMBs) have limited IT budget and resources, and rely on partners or multitalented employees to help manage the company’s network. Business needs for efficiency improvement and retention of critical data require the usage of a server that is easy to get up and running quickly and is dependable. You need to squeeze as much as possible out of your IT dollars while saving costs on features that are not needed in an SMB environment. The System Server IBM Tower X3100 M5 E3-1271V3 is an ideal first server to meet those business needs. It was built for speed, yet eliminates costly design features that are found in general-purpose servers that are unnecessary for smaller businesses.

Scalability and performance  x3100 M5 5457F3A

The Server IBM Tower X3100 M5 E3-1271V3 offers numerous features to boost performance, improve scalability, and reduce costs:

  • The single-socket Server IBM Tower X3100 M5 E3-1271V3 supports the quad-core Intel Xeon Processor E3-1200 v3 (“Haswell”) family of processors, which offer impressive computing power in a space-saving mini-tower design.
  • Choice of processors with up to four cores to enable the effective usage of multi-threaded applications.
  • Intel Xeon Processor E3-1200 v3 family supports Intel Hyper-Threading Technology and Intel Turbo Boost Technology 2.0 to maximize performance.
  • Up to 32 GB of high-speed DDR3 system memory with four DIMM sockets.
  • Memory speeds up to 1600 MHz.
  • Four available high-performance PCI Express 3.0 or 2.0 slots.
  • Up to four internal 3.5-inch simple-swap or hot-swap SATA II HDDs on some models offer low-cost/high-capacity storage.
  • Up to eight internal 2.5-inch hot-swap SAS/SATA HDDs on some models offers maximum scalability and performance.
  • Integrated ServeRAID-C100 software RAID controller supports RAID 0, 1, and 10. Hardware RAID options are available.
  • Integrated dual-port Gigabit Ethernet provides increased network throughput and redundancy with efficient slot-saving integration.
  • An available 5.25-inch drive bay supports either a half-high tape drive or an RDX Removable Disk Cartridge drive, for cost-effective data backup. A DVD-ROM drive is standard in a dedicated bay.
  • Seven USB ports, two USB 3.0 on the front and four USB 2.0 on the back. In addition, there is one internal port for use with a tape drive or RDX Removable Disk Cartridge drive.

Availability and serviceability  x3100 M5 5457F3A

The Server IBM Tower X3100 M5 E3-1271V3 provides many features to simplify serviceability and increase system uptime:

  • ECC memory provides error correction that is not available in PC-class “servers” that use parity memory. Avoiding system crashes (and data loss) because of soft memory errors can mean greater system uptime.
  • Tool-less cover removal provides easy access to upgrades and serviceable parts, such as CPU, memory, and adapters.
  • Hot-swap drive bays that are available on some models combined with RAID capabilities offer the potential of no downtime in the event of a drive failure.
  • The Predictive Failure Analysis (PFA) detects when system components (for example, processors, memory, and hard disk drives) operate outside of standard thresholds and generates pro-active alerts in advance of possible failure, therefore increasing uptime.
  • Built-in Integrated Management Module Version II (IMM2) continuously monitors system health, triggers alerts, and performs recovering actions in case of failures to minimize downtime.
  • Built-in diagnostic tests using Dynamic Systems Analysis (DSA) Preboot speeds up troubleshooting tasks to reduce service time.
  • A DVD-ROM drive is standard in a dedicated bay for easy software installation.
  • Redundant hot-swap power supports on some models helps keep the server always running
  • One-year customer replaceable unit and onsite limited warranty, next business day 9×5. Optional service upgrades are available.

Manageability and security  x3100 M5 5457F3A

Powerful systems management features simplify local and remote management of the Server IBM Tower X3100 M5 E3-1271V3:

  • The server includes an Integrated Management Module II (IMM2) to monitor server availability and perform remote management (some features require optional license upgrades).
  • Integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
  • Integrated Trusted Platform Module (TPM) 1.2 support enables advanced cryptographic functions, such as digital signatures and remote attestation.
  • Intel Xeon Processor E3-1200 v3 family supports Industry-standard Advanced Encryption Standard (AES) NI support for faster, stronger encryption.
  • IBM Systems Director is included for proactive systems management. It offers comprehensive systems management tools that help to increase up-time, reduce costs, and improve productivity through advanced server management capabilities.
  • The Intel Execute Disable Bit function can help prevent certain classes of malicious buffer overflow attacks when combined with a supporting operating system.

Energy efficiency  x3100 M5 5457F3A

The Server IBM Tower X3100 M5 E3-1271V3 offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to a green environment:

  • Energy-efficient planar components help lower operational costs.
  • Available 350 W power supply, 300 W 80 PLUS Bronze certified power supply, or 430 W hot-swap 80 PLUS Silver certified power supply.
  • With the addition of the Operating Temperature Enhancement Kit, the server supports the ASHRAE A3 standard, which means the server can operate in temperatures as high as 40°C. This means potential savings in environmental cooling costs.
  • The Intel Xeon processor E3-1200 v3 product family offers significantly better performance over the previous generation while fitting into the same thermal design power (TDP) limits.
  • Low-voltage Intel Xeon processors draw less energy to satisfy demands of power and thermally constrained data centers and telecommunication environments.
  • The server uses hexagonal ventilation holes, a part of Calibrated Vectored Cooling™ technology. Hexagonal holes can be grouped more densely than round holes, providing more efficient airflow through the system.

Locations of key components  x3100 M5 5457F3A

The Server IBM Tower X3100 M5 E3-1271V3 is available in two different tower designs: a compact tower with a fixed power supply and simple-swap drive bays, or a standard tower with hot-swap power supplies and hot-swap drive bays. Figures 2 and 3 show the front and rear of the Server IBM Tower X3100 M5 E3-1271V3.

Front view of the System x3100 M5 - compact tower and standard tower
Figure 2. Front view of the System Server IBM Tower X3100 M5 E3-1271V3 – compact tower and standard tower

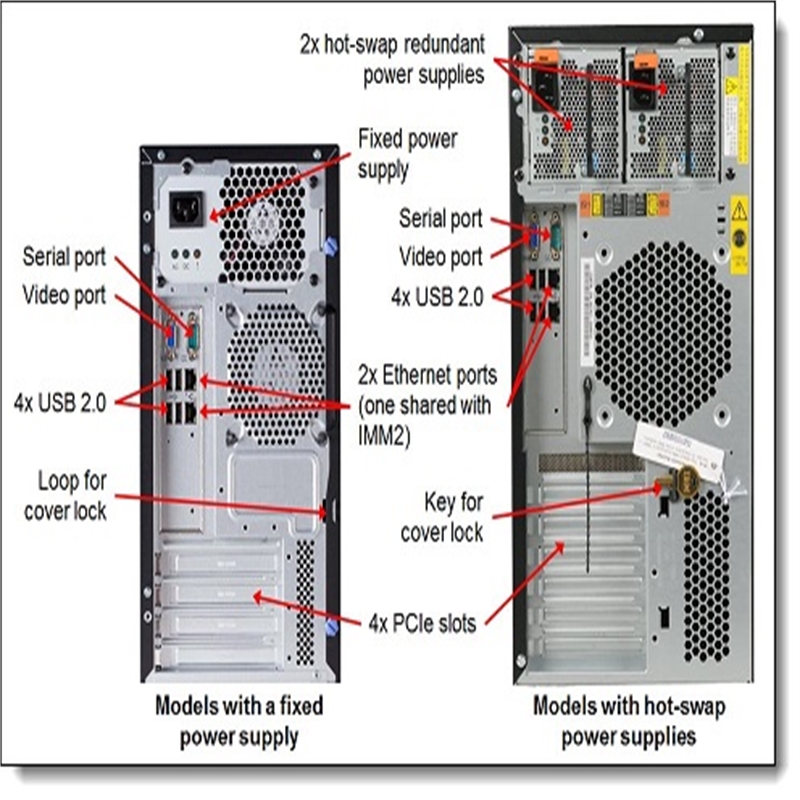

Rear view of the System x3100 M5 - compact tower and standard tower
Figure 3. Rear view of the System Server IBM Tower X3100 M5 E3-1271V3 – compact tower and standard tower

Figures 4 and 5 show the locations of key components inside the server.

Inside view of System x3100 M5 - compact tower configuration
Figure 4. Inside view of System Server IBM Tower X3100 M5 E3-1271V3 – compact tower configuration

Inside view of System x3100 M5 - standard tower configuration
Figure 5. Inside view of System Server IBM Tower X3100 M5 E3-1271V3 – standard tower configuration
