658071-B21 - HP 500GB 6G SATA 7.2K 3.5in SC MDL HDD
658071-B21 HP G8 G9 500-GB 6G 7.2K 3.5 SATA SC
Copyright notice |
© Copyright 2015 Hewlett-Packard Development Company, L.P. |
Product dimensions (W x D x H) |
4.16 x 6.69 x 1.06 in |
Warranty standard statement |
SATA hard drives have a 1-year limited warranty regardless of the warranty period for the system in which they are installed. |
Weight ( Imperial ) |
3 lb |
Weight ( Metric ) |
1.36 kg |
Technical Information
Storage Capacity |
500 GB |
Features |
Time-limited Error Recovery (TLER) |
|
Drive Performance
Maximum External Data Transfer Rate |
768 MBps (6 Gbps) |
Rotational Speed |
7200 rpm |
|
Interfaces/Ports
Drive Interface |
SATA |
Drive Interface Standard |
SATA/600 |
SATA Pin |
7-pin |
|
Physical Characteristics
Drive Type |
Internal |
Drive Width |
3.5" |
Height |
1" |
Width |
4.4" |
Depth |
7.3" |
Weight (Approximate) |
3 lb |
|
Miscellaneous
Warranty
Description:

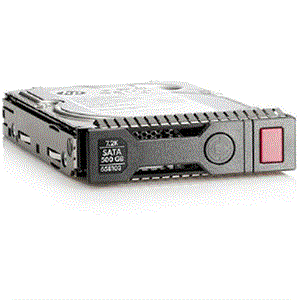

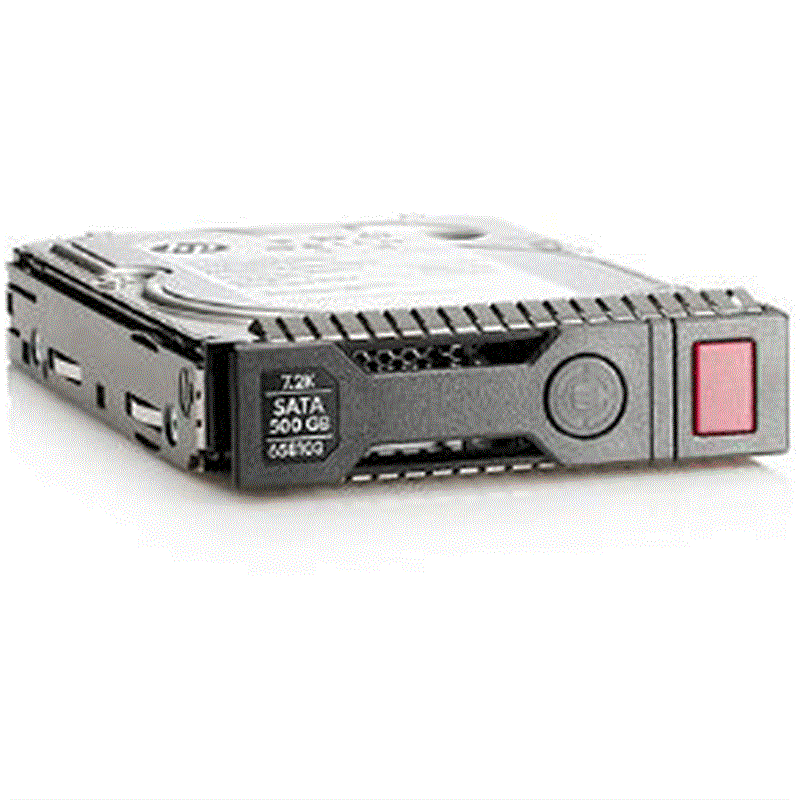

HP G8 G9 (Gen8 Gen9) 500GB 3.5-inch (LFF) Serial ATA (SATA) 6G 7.2K Hot-Plug Midline (MDL) Hard Drive in G8 G9 (Gen8 Gen9) SmartDrive Carrier (SC) (as pictured)
Genuine HP serial number and firmware
Part Number(s)
Option Part# 658071-B21
Spare Part# 658103-001
Assembly Part# 658083-001
Assembly Part# 658084-001
Model# MB0500GCEHE
Model# MB0500GCEHF
Model# ST500NM0011
SmartBuy Part# 658071-S21
Overview:
HP SATA hard drives are designed for the reliability and larger capacities demanded by today's entry server and external storage environments. HP SATA Midline hard drives are designed with economical reliability and performance for external storage backups and archival applications. Midline SATA hard drives provide the best price advantage for non-mission critical applications with low workloads of 40% or less.
Specifications: |
Category |
Proliant HardDrive |
Sub-Category |
7.2K |
Generation |
SATA SD |
Part Number |
658071-B21 |
Products ID |
459457 |
Type |
Hard Drive - Hot-Swap - Gen8 |
Large Form Factor |
3.5 inches |
Capacity |
500GB |
Interface Type |
Serial ATA |
Connector |
22-Position Serial ATA (SATA) Plug |
Data Transfer Rate |
6G = 6Gb/sec (750 MB/s) |
Spindle Speed |
7200RPM |
Native Command Queuing |
Supported |
Bytes/Sector |
512 |
Compatibility 658071-B21 - HP 500GB 6G SATA 7.2K 3.5in SC MDL HDD
HP ProLiant Servers Series:
